Brand Name : HSF
Model Number : P50T2-50-PET
Place of Origin : China
MOQ : 1000kg
Payment Terms : T/T, L/C
Supply Ability : 80000kg per week
Delivery Time : within 10 days
Packaging Details : PE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
Material : Polyethylene Terephthalate
Color : Clear, Customized
Thickness : 50um ± 3%
Coating : Single Side Silicone Coating
Length : ≤3000m
Release Force (180°) : 4.5 ± 1.5 gf/25mm
Sample : A4 Sheet For Free
50um Clear PET 50micron, Silica Gel Protective, good adhesive strength and holding power for metal, plastic, glass, etc.
Test Item | Unit | Test Method | Nominal Value | |
Color | - | Visual | Transparent | |
Thickness | Backing Film | μm | Caliper | 50 ± 5 |
Adhesive | 10 ± 5 | |||
Length | m | Tapeline | As per requirement | |
Width | mm | Tapeline | ≤1800 | |
Tensile Strength | Mpa | GB/T7753-87 | ≥12 | |
Elongation | % | GB/T7753-87 | ≥160 | |
Peel Force (180°) | gf/25mm | GB/T2792-1998 | 3 ~6 | |
Thermal Endurance | ℃/h | SS plate 80℃ 1h | No residual adhesives | |
ROHS | - | - | SGS | |
Working Temperature | -10℃ + 120℃ |
It has good adhesive strength and good holding power for metal, plastic, glass and other materials to be applied.
It is not easy to produce residue and other undesirable phenomena after the product is applied to the object.
1. Storage Conditions: Protective film should be stored in the warehouse.
2. Avoid sun and rain, prohibit contact with organic solvents, acid and alkali oil.
3. Keep clean and dry, room the recommended temperature is between -5℃~35℃, humidity should be less than 75%.
4. Shelf life: 6 months from the date of manufacture.
![]() |

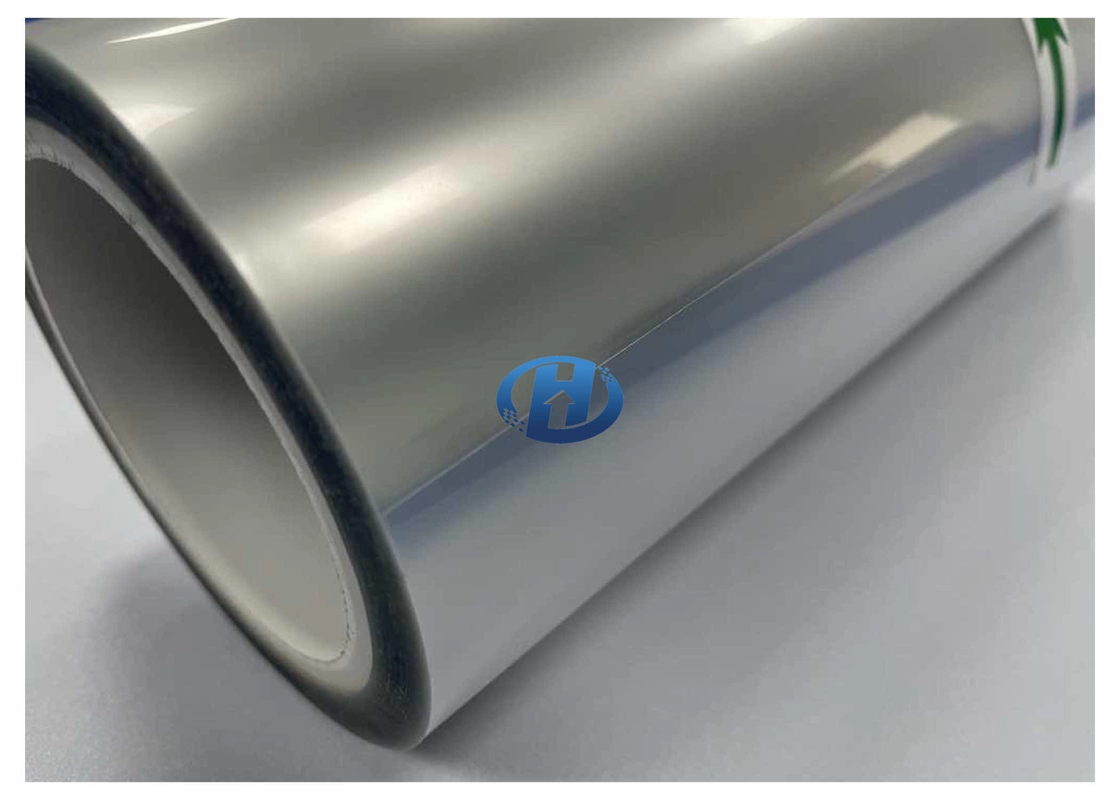

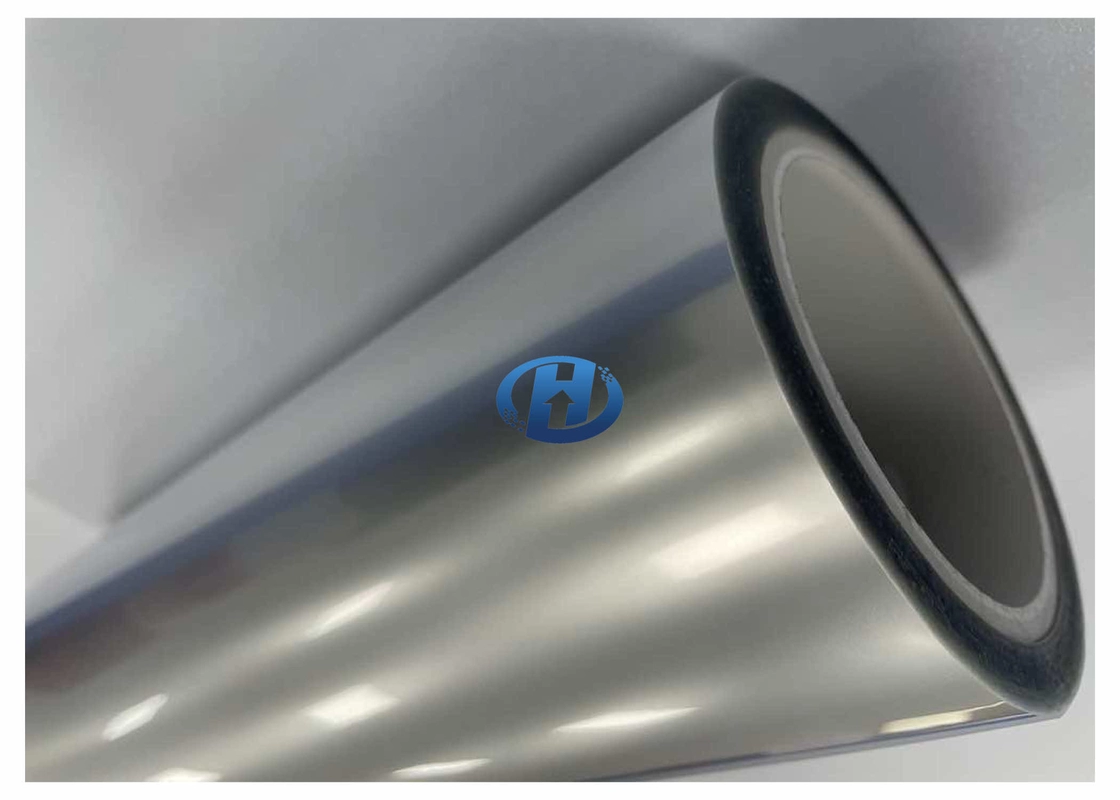

50um Clear PET Single Side Silica Gel Coating Film Use as Protective film in 3C indutries Images |
